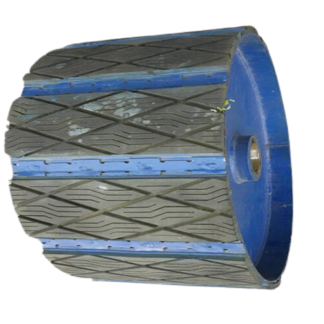

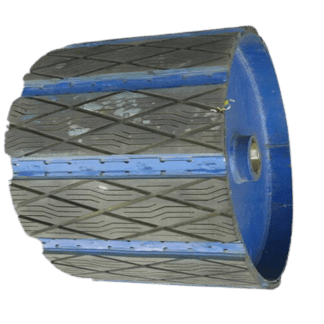

What Is a Head Drum Pulley?

The head drum pulley is installed at the top of the bucket elevator and functions as the driving pulley. It drives the elevator belt and ensures smooth discharge of materials. Proper design of the head pulley is critical for stable operation and belt tracking.

👉 For improved performance, most head pulleys are equipped with lagging material to increase friction and reduce slipping.
👉 See our lagging solutions here: Lagging Material for Elevator Head Pulley

Why Lagging Is Important for Head Pulleys

Without lagging, the friction between the pulley and the belt may not be sufficient, especially under load or in dusty environments.

A properly lagged head drum pulley can:

  • Improve traction between belt and pulley
  • Reduce belt slippage
  • Protect pulley surface from wear
  • Extend service life of both belt and pulley

Industry practice also shows that head pulleys are commonly supplied with rubber lagging to enhance performance and reliability

Custom Head Drum Pulley Options

We supply customized head drum pulleys according to your bucket elevator design:

  • Pulley diameter and face width
  • Shaft size and mounting type
  • Lagging material and thickness
  • Surface treatment (anti-corrosion)
  • Bearing arrangement

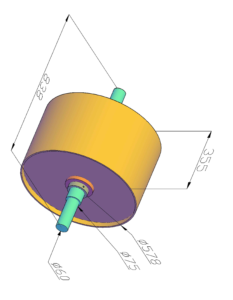

Below is a sample drawing.

head drum pulley

Key Features

  • Designed for bucket elevator drive systems
  • Available with or without lagging
  • Stable belt tracking and operation
  • Suitable for grain, feed, and bulk materials
  • Long service life with reduced maintenance

Applications

  • Grain elevators
  • Feed mills
  • Seed processing plants
  • Bulk material conveying systems

Ordering Information

To recommend a suitable head drum pulley, please provide:

  • Pulley diameter
  • Face width
  • Shaft dimensions or drawing
  • Application details

FAQ – Head Drum Pulley

What is a head drum pulley?

A head drum pulley is the main driving pulley installed at the discharge end of a conveyor or bucket elevator system. It transfers power from the motor to the belt and helps move materials through the conveying system.

What is the function of a head drum pulley in a conveyor system?

The head drum pulley drives the conveyor belt or elevator belt and supports efficient material discharge. It also helps maintain proper belt tracking and tension during operation.

What materials are head drum pulleys made from?

Head drum pulleys are commonly manufactured from carbon steel, stainless steel, or other heavy-duty metal materials depending on operating conditions and corrosion resistance requirements.

What industries use head drum pulleys?

Head drum pulleys are widely used in grain handling, agriculture, mining, cement, aggregate processing, fertilizer production, and general bulk material conveying systems.

What is the difference between a head pulley and a tail pulley?

A head pulley is located at the discharge end of the conveyor and is usually powered, while a tail pulley is positioned at the loading end and helps guide and tension the belt.

How do I choose the correct head drum pulley?

Selecting the correct head drum pulley depends on belt width, pulley diameter, shaft size, conveying capacity, operating speed, and the type of material being transported.

What are the advantages of using a head drum pulley?

Head drum pulleys provide reliable belt drive performance, improve conveyor efficiency, support smooth material discharge, and help maintain stable belt operation.

👉Need a suitable head drum pulley for your bucket elevator?
Send us your drawing or dimensions for quotation.

For more details about the head elevator pulleys and tail elevator pulleys, please check this link:

https://www.ytconveyor.com/elevator-pulleys/
