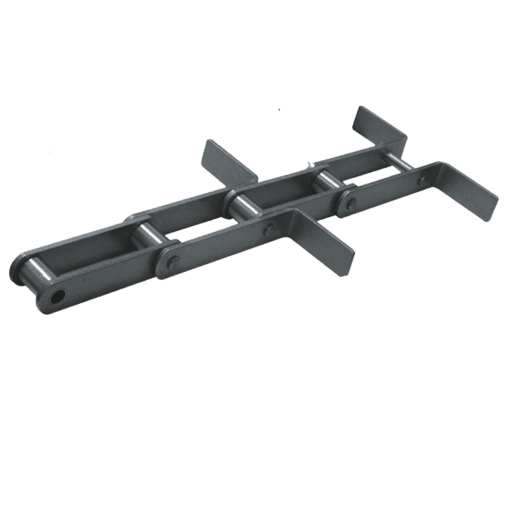

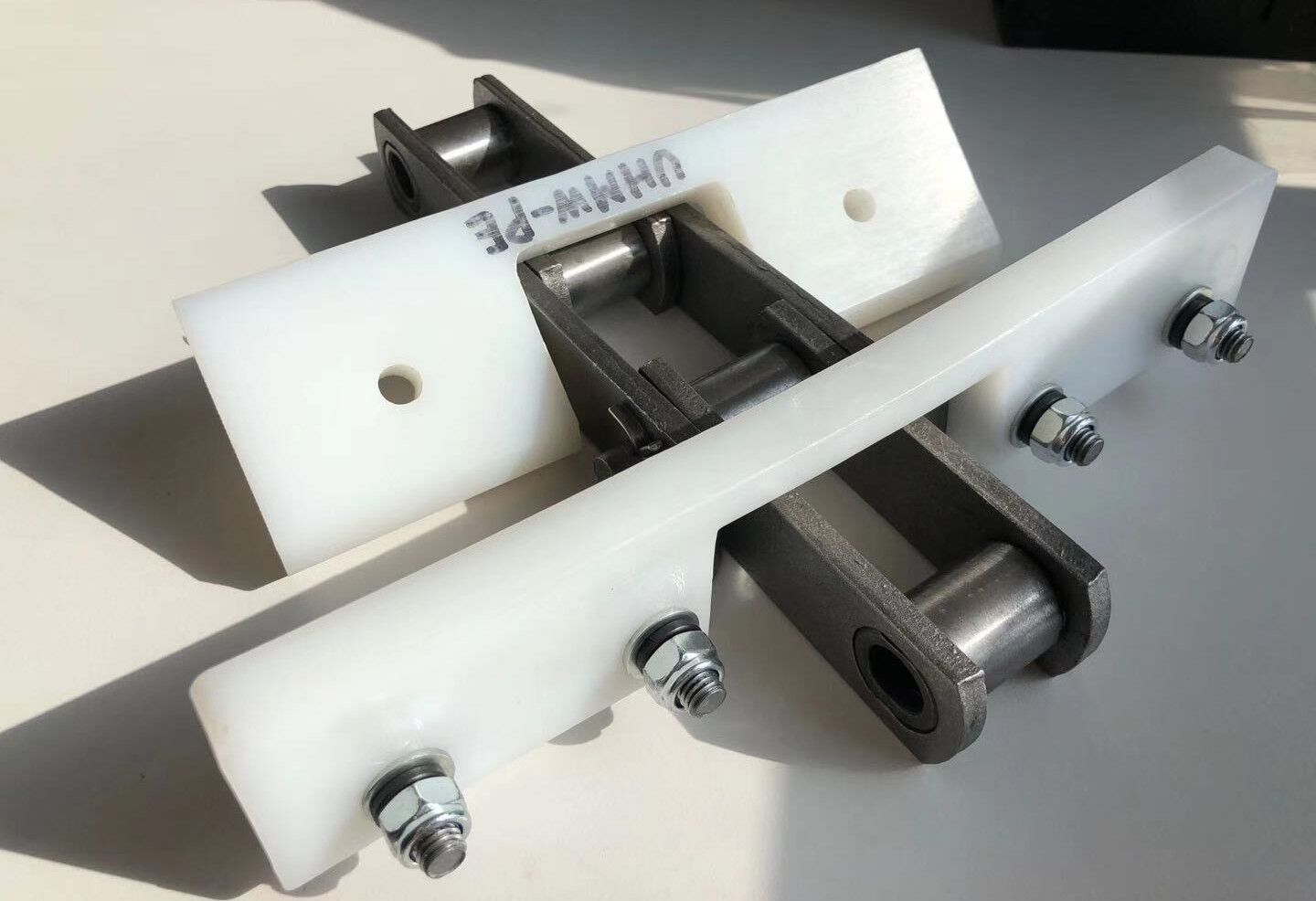

Our GLF and 81X, 81XH, and 81XHH series bush roller chain is used in horizontal scraper conveyors.

Our chain uses high-quality medium alloy steel material. The chain plate uses material 40Mn, and the pin and roller use the material 40Cr. The surface has hardness heat treatment, the chain has a very good anti-shearing force and very good tensile strength. It also has a beautiful appearance.

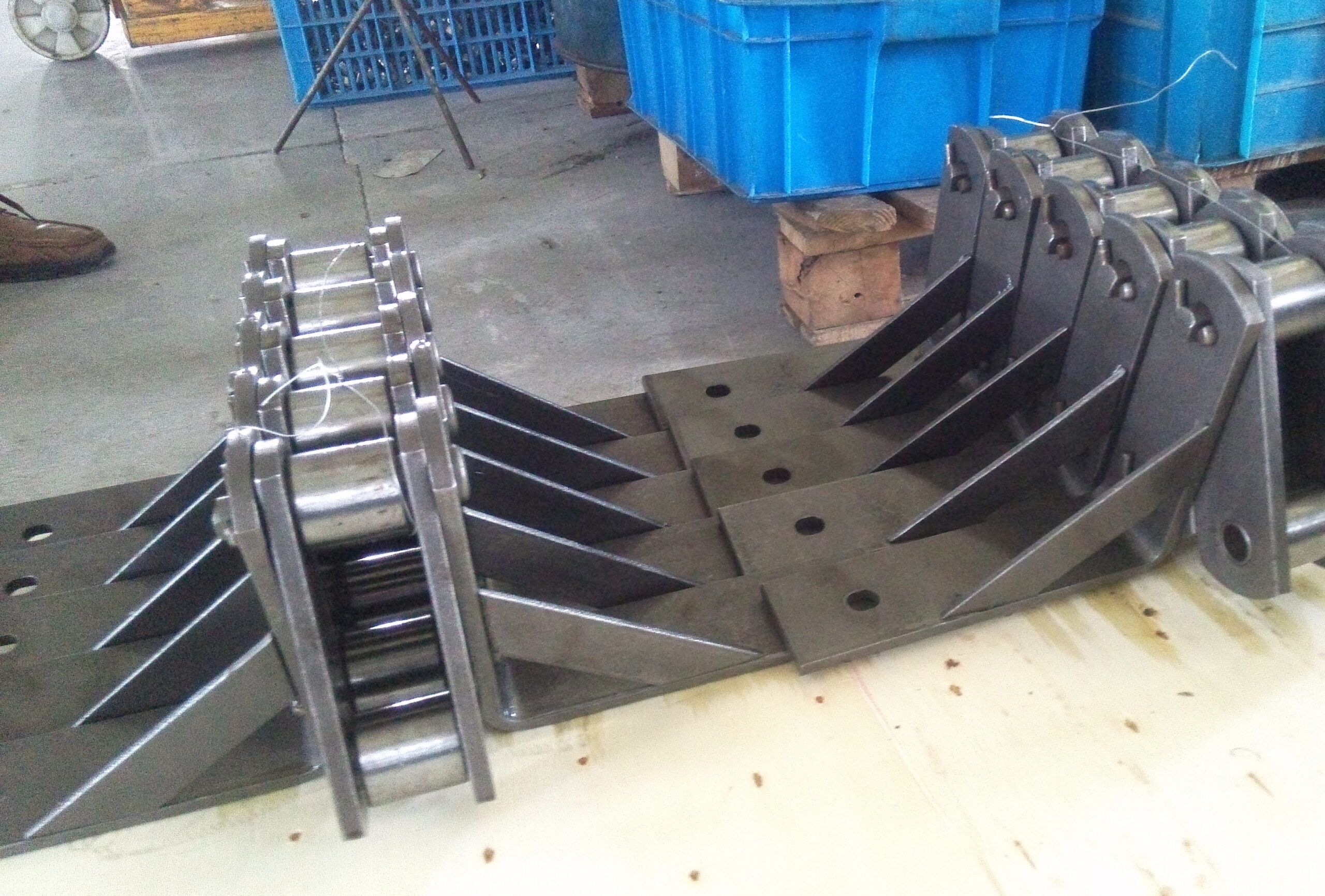

GLF series chain is used for TGSS Flat Scrape Conveyor. Install our BF Series Flat Scrape Flight.



Model	Pitch P	Inner width b1	Roller dia d1	Pin dia d2	Plate width H	Plate thickness T	Bending plate dimension parameters				Breaking Load-in KN
							Plate channels L	Hole space L1	Hole space L2	Hole dia
GLF66.5(5-6)D	66.5	26.5	22.23	12.7	30	5/6	160	102		2-Φ9X14	130
							230	95	195	4-Φ9X14
							270	102	228
GLF66.675(5-6)D	66.675	26.5	22.23	12.7	30	5-6	182	90	150	4-Φ9X14	130
							215	95	195
							295	95	195
GLF100(6)D	100	38.5	36	16	40	6	170	115		2-Φ9X14	220
							225	95	195	4-Φ9X14
							294	115	245
							370	155	255
GLF125(6)D	125	32.5	25	18	50	6	300	115	245	4-Φ9X14	180
							370	130	330
GLF160(8)D×385	160	36.5	36	17.8	50	8	385	130	330	4-Φ11X15	200
GLF200(8)D×467	200	42.5	40	20	60	8	467	160	420	4-Φ13X17	250
81X	66.27	26.99	23.02	11.1	28.6	4	Other dimensions can be customised				106.7
81XH	66.27	26.99	23.02	11.1	32.3	6/8					152
81XHH	66.27	26.99	23.02	11.1	32.3	8					186.7

Note: Other specifications not in the list above can be made by clients’ specifications. Clients can ask for our empty drawing for a reference.

81X, 81XH, 81XHH series chain



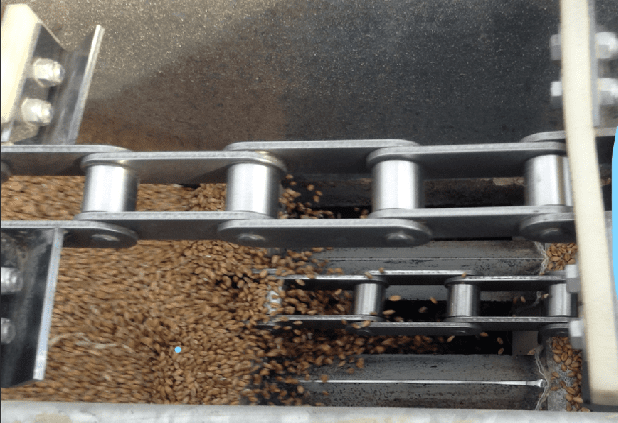

Drag Scraper Chain Conveyor
