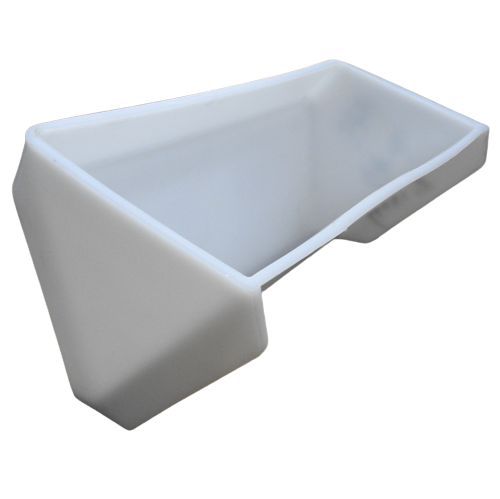

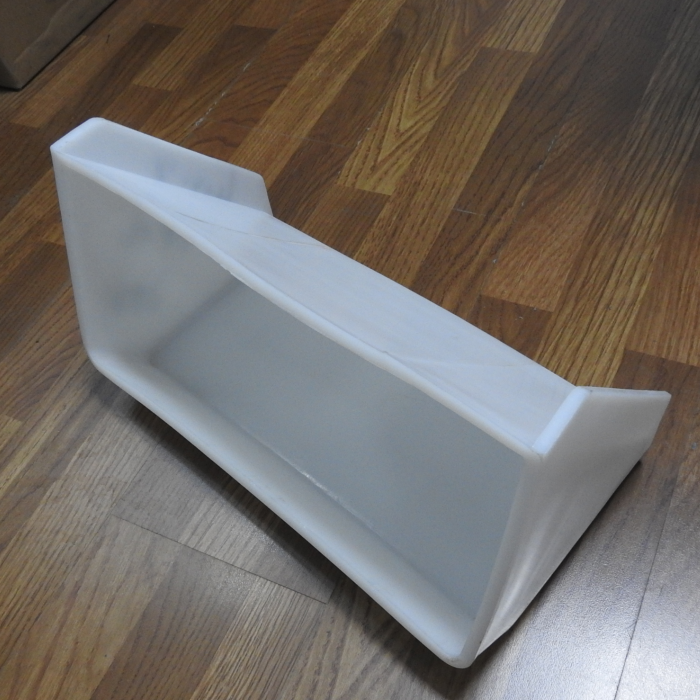

DX Type Elevator Bucket Overview

DX type elevator bucket is a specialized bucket designed for high-temperature grain drying applications. It combines high capacity, high efficiency, and low-damage conveying, making it suitable for modern grain processing systems.

Its design concept is derived from advanced grain dryer systems developed by KANEKO (Japan) and SUNCUE (Taiwan), where both performance and grain protection are critical.

Design Advantage

DX buckets feature an optimized internal structure with a sliding design at the back of the bucket. This increases internal capacity while maintaining gentle material flow during conveying.

• Increased bucket capacity
• Improved material flow
• Reduced impact during discharge

Applications

DX type elevator buckets are widely used in high-temperature drying systems for:

• Paddy
• Wheat
• Maize / Corn
• Beans and pulses
• Sunflower seeds
• Rapeseed
• Sorghum
• Cocoa and coffee

They are especially suitable for dried grain, post-processed feed, and seed materials requiring low-damage handling.

Use advice

• It is used for low-speed gravity-style material lifting style;
• Recommend the bucket installation distance, the height of the bucket back height C size+15mm;
• Recommend “capacity (L) ” as the use capacity for your engineering design.
• Below the table, the size is for HDPE material. Because of the differences in the material shrinkage, the Nylon and PU elevator bucket size is approximately more than 2%.

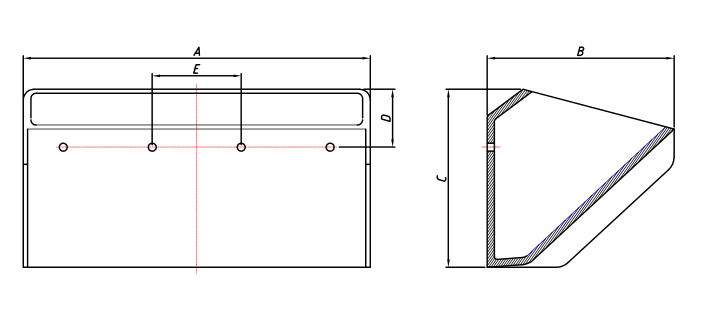

Technical Drawing

Specifications

Note: Fitting holes and hole diameter can be customized.

👉 Not sure which bucket fits your system?

Tell us your application or required size — we will recommend the right model within 24 hours.

Working Principle

DX buckets combine sliding material transfer with controlled discharge, reducing sudden impact during conveying. This helps maintain grain integrity even under high-temperature drying conditions.

DH Type Comparison

DX and DH buckets are both used in grain drying systems but differ in temperature application:

• DX type – designed for high-temperature drying applications
• DH type – designed for low-temperature drying applications

Both types are suitable for similar materials, and selection depends on system temperature and process requirements.

DM vs DH vs DX Bucket Comparison

Different bucket designs are developed for specific applications in grain processing and drying systems:

• DM type – designed for rice milling applications, using a sliding discharge method to ensure gentle conveying and minimize grain damage, especially for maintaining rice appearance
• DH type – designed for low-temperature grain drying systems, providing stable and gentle conveying to reduce damage during the drying process
• DX type – designed for high-temperature drying applications, combining high capacity with low-damage conveying for dried grain, feed, and seed materials

These bucket types are widely used in advanced grain processing and drying systems, with design concepts derived from technologies developed by companies such as KANEKO (Japan) and SUNCUE (Taiwan).

Performance Advantage

DX buckets provide a balance between high capacity and low damage, improving overall system efficiency while maintaining grain quality.

• High conveying capacity
• Reduced grain damage
• Stable operation in drying systems
• Suitable for continuous processing

Engineering Considerations

For optimal performance, the following factors should be considered:

• Drying temperature
• Material characteristics
• Elevator speed
• Bucket spacing and configuration

FAQ – DX Low Damage Grain Elevator Bucket

What is a DX low damage grain elevator bucket?

A DX low damage grain elevator bucket is a specialized bucket designed to reduce grain breakage during vertical conveying. It is commonly used in grain dryers, rice mills and agricultural elevator systems where protecting grain quality is important.

What applications are DX grain elevator buckets used for?

DX grain elevator buckets are widely used in grain drying systems, rice processing plants, seed conveying equipment, corn elevators and agricultural bulk material handling systems.

What is the advantage of a DX low damage grain bucket?

The main advantage of a DX bucket is gentle grain handling. Its design helps minimize impact during loading and discharge, reducing cracked grain and maintaining product quality.

What materials are available for DX elevator buckets?

DX grain elevator buckets are commonly manufactured in HDPE, Nylon and PU materials. HDPE offers lightweight performance, Nylon provides higher wear resistance, and PU improves impact resistance and service life.

Are DX elevator buckets suitable for grain drying systems?

Yes. DX elevator buckets are commonly used in grain drying equipment because they reduce damage during conveying and support smooth material flow.

What is the difference between DX and DH dryer buckets?

DX buckets are designed primarily for low grain damage during conveying, while DH buckets are typically optimized for low-temperature drying systems with gentle handling requirements.

How do I choose the correct DX elevator bucket size?

Bucket size selection depends on grain type, conveying capacity, elevator speed, pulley diameter and bucket spacing. Dimensions such as A, B and C are commonly used for model matching.

Can DX low damage grain elevator buckets be customized?

Yes. DX buckets can be customized according to material type, mounting hole spacing, bucket dimensions and grain handling system requirements.
