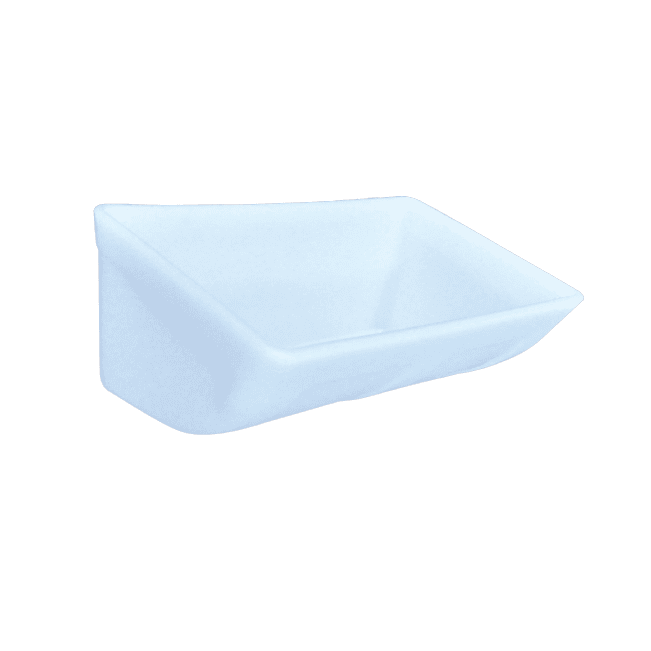

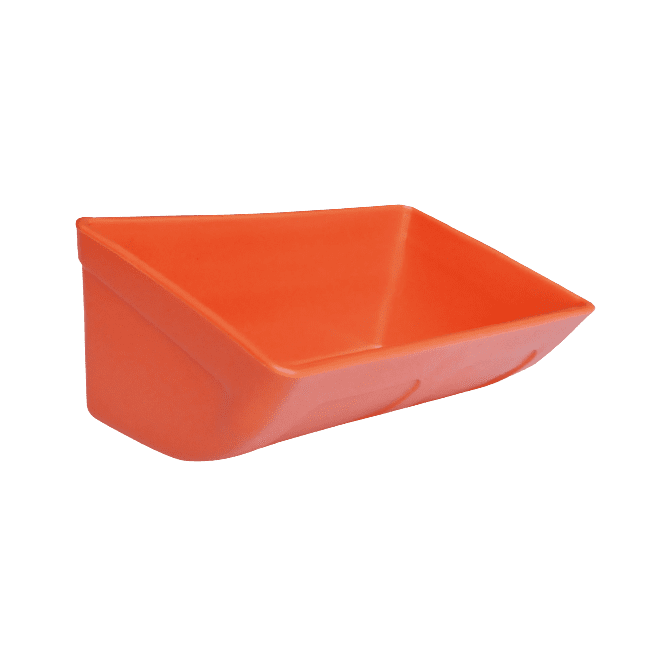

DQ Type Elevator Bucket Overview

DQ type elevator bucket is a shallow bottom bucket designed in metric dimensions. It corresponds to the DS type (deep bottom) bucket, with both types sharing similar A and B dimensions, such as DQ2314 and DS2314.

This structural compatibility allows flexible selection based on conveying requirements while maintaining system consistency.

Working Principle

Unlike DS buckets that rely on gravity discharge, DQ buckets operate based on centrifugal force. They are designed for high-speed bucket elevator systems, where sufficient rotational speed generates the centrifugal force required for material discharge.

Applications

DQ type elevator buckets are widely used in:

  • Powder material conveying
  • Grain and feed processing
  • Agricultural bulk material handling
  • Light bulk material systems

They are especially common in European markets, with typical applications found in systems such as those used by STIF (France).

Product Features

The DQ bucket is designed for efficient handling of powder and light materials in high-speed conveying environments.

  • Shallow bottom design for controlled discharge
  • Optimized for high-speed centrifugal operation
  • Suitable for powder and fine materials
  • Metric size for compatibility with European systems
  • Reliable performance in continuous conveying

Material Options

Available materials include:

  • HDPE – lightweight, cost-effective, suitable for general applications
  • Nylon – higher strength and wear resistance
  • PU (Polyurethane) – excellent impact resistance and longer service life

Different materials can be selected based on working conditions such as abrasion, temperature, and impact requirements.

Use advice

  • It is suitable for high-speed centrifugal discharge and light bulk material lifting;
  • A, B and C sides shown below table is for HDPE material. For the different shrinkage of different materials Nylon and PU elevator bucket size approximately increased by 2%;
  • Recommend using (Z-Y)+5% capacity data as your engineering design use.

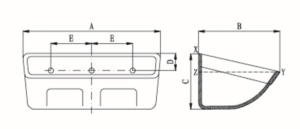

Technical Drawing

dq elevator bucket drawing

Specifications

Model Bucket Dimension(mm) Mounting Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From Top
D		 Hole Centres
E		 No. of
Holes		 Hole
diameter		 Total Level
(X-Y)		 Usable Level
(Z-Y)+5%		 Water Level
(Z-Y)
DQ1009 106 93 66 25 50 2 7 0.40 0.22 0.21
DQ1311 136 118 72 25 60 2 7 0.50 0.32 0.30
DQ1312 135 117 85 30 60 2 7 0.70 0.64 0.61
DQ1613 168 132 80 25 90 2 9 1.05 0.79 0.75
DQ1814 184 132 83 30 100 2 9 1.10 0.84 0.80
DQ1914 190 147 117 35 100 2 9 1.78 1.31 1.25
DQ2312 234 125 95 35 120 2 9 1.50 1.16 1.10
DQ2314 237 143 96 30 120 2 9 1.90 1.47 1.40
DQ2315 235 155 91 30 120 2 9 2.00 1.68 1.60
DQ2316 234 160 97 35 120 2 9 2.00 1.47 1.40
DQ2417 242 178 115 40 120 2 9 3.00 2.36 2.25
DQ2616 260 167 144 50 80 3 9 2.20 1.32 1.25
DQ2814 287 143 94 30 90 3 9 2.20 1.79 1.70
DQ2815 275 153 91 30 90 3 9 2.60 2.21 2.10
DQ2816 278 158 108 35 90 3 9 2.70 2.10 2.00
DQ2817 280 173 121 40 90 3 9 3.20 2.31 2.20
DQ2824 280 244 169 45 100 3 9 6.40 5.25 5.00
DQ3216 319 158 111 35 80 4 9 3.00 2.20 2.10
DQ3321 330 215 138 40 85 4 9 5.90 4.43 4.22
DQ3325 331 256 166 50 85 4 9 8.50 6.90 6.60
DQ3823 382 230 165 45 100 4 9 8.00 6.40 6.10
DQ3917 393 170 130 40 100 4 9 5.00 3.42 3.25
DQ4423 447 232 163 45 90 5 9 9.00 7.25 6.90
DQ4723 475 231 161 45 95 5 9 10.20 7.67 7.30
DQ4726 461 255 170 50 95 5 11 12.00 8.72 8.30
DQ5121 519 225 168 50 100 5 11 10.76 9.46 8.60
DQ5626 560 260 175 50 115 5 11 14.20 11.10 10.60

Note: Fitting holes and hole diameter can be customized.



👉 Not sure which bucket fits your system?

Tell us your application or required size — we will recommend the right model within 24 hours.



Compared with DS type buckets

  • DQ type – shallow bottom, centrifugal discharge, suitable for high-speed systems and light materials
  • DS type – deep bottom, gravity discharge, suitable for lower-speed systems and larger particle materials

Both types share similar dimensions (e.g., DQ2314 and DS2314), allowing flexible replacement based on application requirements.

Performance Advantage

DQ type elevator buckets are ideal for high-speed conveying systems, where centrifugal force ensures efficient and continuous material discharge. This makes them particularly suitable for powder and light bulk materials.

Engineering Consideration

The selection of DQ buckets depends on:

  • Elevator running speed
  • Material type (powder vs particle)
  • Bucket spacing
  • Head pulley diameter

Proper matching of these factors ensures optimal conveying efficiency.

DQ Type vs Other Elevator Buckets

Compared with other bucket types, we offer a complete range of elevator buckets for different capacity requirements and system standards. We offer both inch size and metric size bucket types to match different system standards:

  • D type – deep bottom bucket in inch size, recommended for high-capacity conveying and heavy-duty applications
  • S type – shallow bottom bucket in inch size, suitable for light bulk materials and stable, gentle conveying
  • DS type – deep bottom bucket in metric size, suitable for high-capacity conveying in metric system installations
  • M type – medium-capacity bucket in metric size, ideal for balanced conveying where both capacity and discharge control are required
  • DQ type – shallow bottom bucket in metric size, suitable for lower capacity and more controlled discharge applications

This range allows customers to select the most suitable bucket type based on capacity, material characteristics, and system standards.

You may also be interested in

DQ Steel vs Plastic Shallow Bottom Elevator Buckets

(DQ & S Type Comparison)

Feature DQ Steel Bucket (Shallow Bottom) S Plastic Bucket (Metric) DQ Plastic Bucket (Inch Size)
Material Carbon steel / Stainless steel HDPE / Nylon / PU HDPE / Nylon / PU
Manufacturing Method One-piece stamping (deep drawing) Injection molded Injection molded
Structure Seamless, high strength Lightweight, integrated Lightweight, integrated
Weight Heavy Light Light
Strength Very high, suitable for heavy-duty use Moderate Moderate
Wear Resistance Excellent for abrasive materials Good Good
Corrosion Resistance Lower (needs coating or SS) Excellent (non-corrosive) Excellent (non-corrosive)
Capacity Design Shallow bottom, fast discharge Optimized for clean discharge Shallow bottom, standard DQ type
Size Standard Metric sizes Metric sizes Inch sizes
Customization Limited (mold-based) Limited Limited
Application Cement, sand, industrial bulk handling Grain, feed, agriculture Grain, feed, standard conveying
Temperature Resistance High temperature suitable Medium (depends on material) Medium (depends on material)
Cost Higher initial cost, long service life Lower Lower
