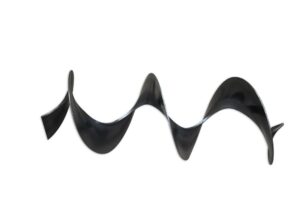

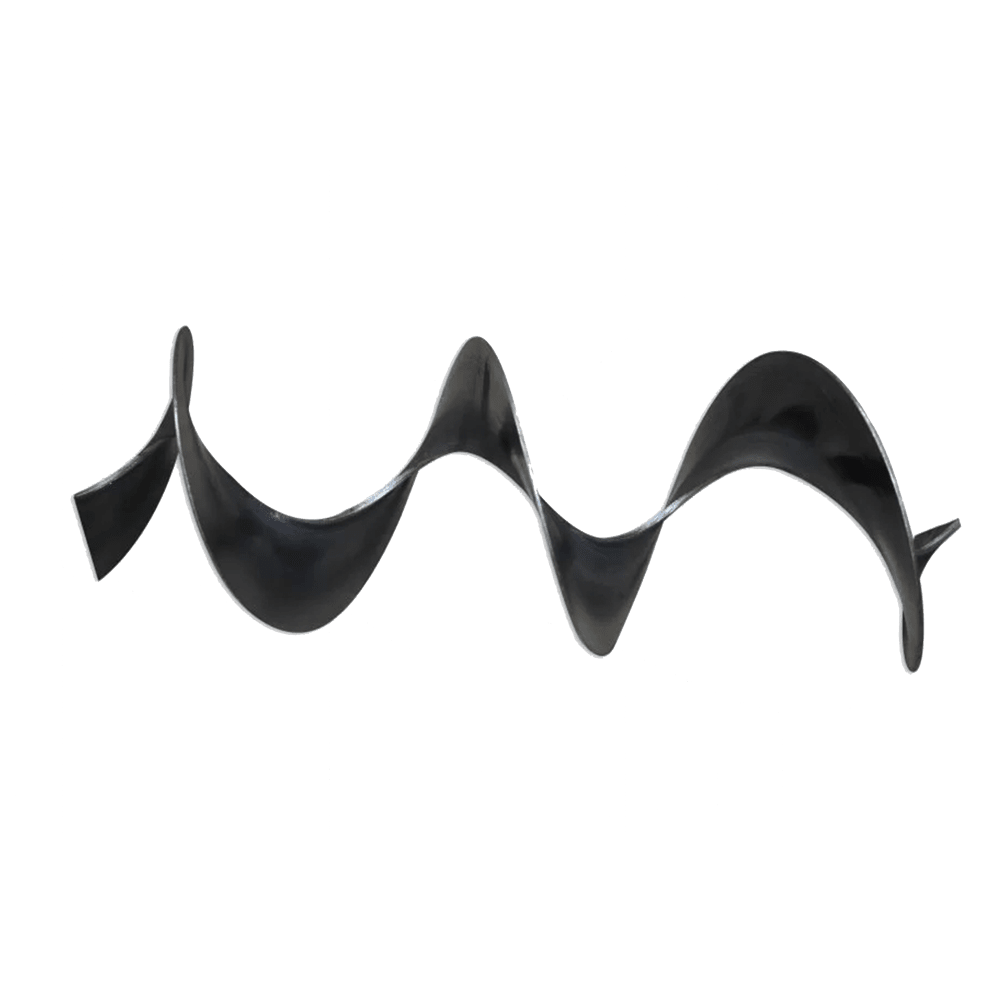

Continuous Cold Rolled Screw Conveyor Part Flight Manufacturer

Features of the continuous screw flighting

1. Quick production time, excellent overall rigidity and strength.
2. It is easy to be welded and assemble.
3. Although outer edge thickness is about half of the inner edge thickness, the hardness of the outer edge is almost double after the cold-rolled process. Then the outer edge has much more wear-resistant ability than the inner edge.

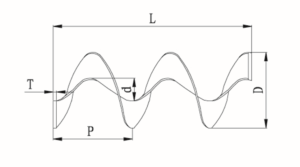

4. The diameter, length, pitch, and thickness could be customized. Below is the table range.

Model	LY125	LY160	LY200	LY250	LY320	LY400	LY500
OD D（mm）	φ125	φ160	φ200	φ250	φ320	φ400	φ500
ID D（mm）	φ30	φ42	φ48	φ60	φ76	φ108	φ133
Pitch P（mm）	100-125	120-160	160-200	200-250	250-320	320-400	400
Thickness T （mm）	3.5	3.5	3.5	3.5-5	3.5-5	3.5-5	3.5-5

***For all the thickness which is not listed above, customisation services are available when the min quantity of the raw material can be bought in a certain volume.



Rotation of the screw conveyor flight

We need to know the rotation before production. Below is a reference drawing:

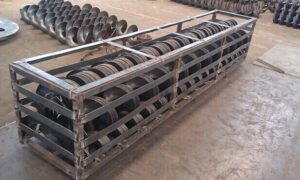

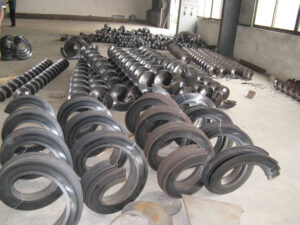

Packing of screw flight conveyor flight

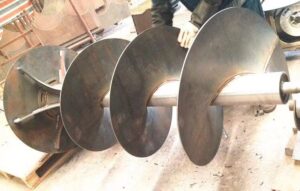

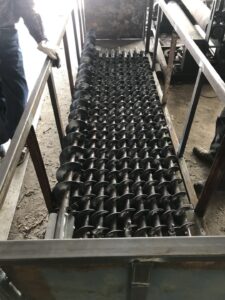

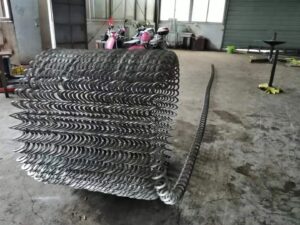

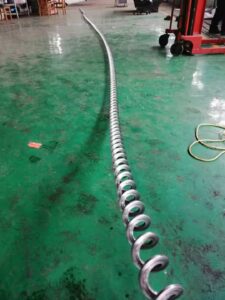

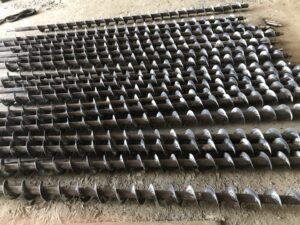

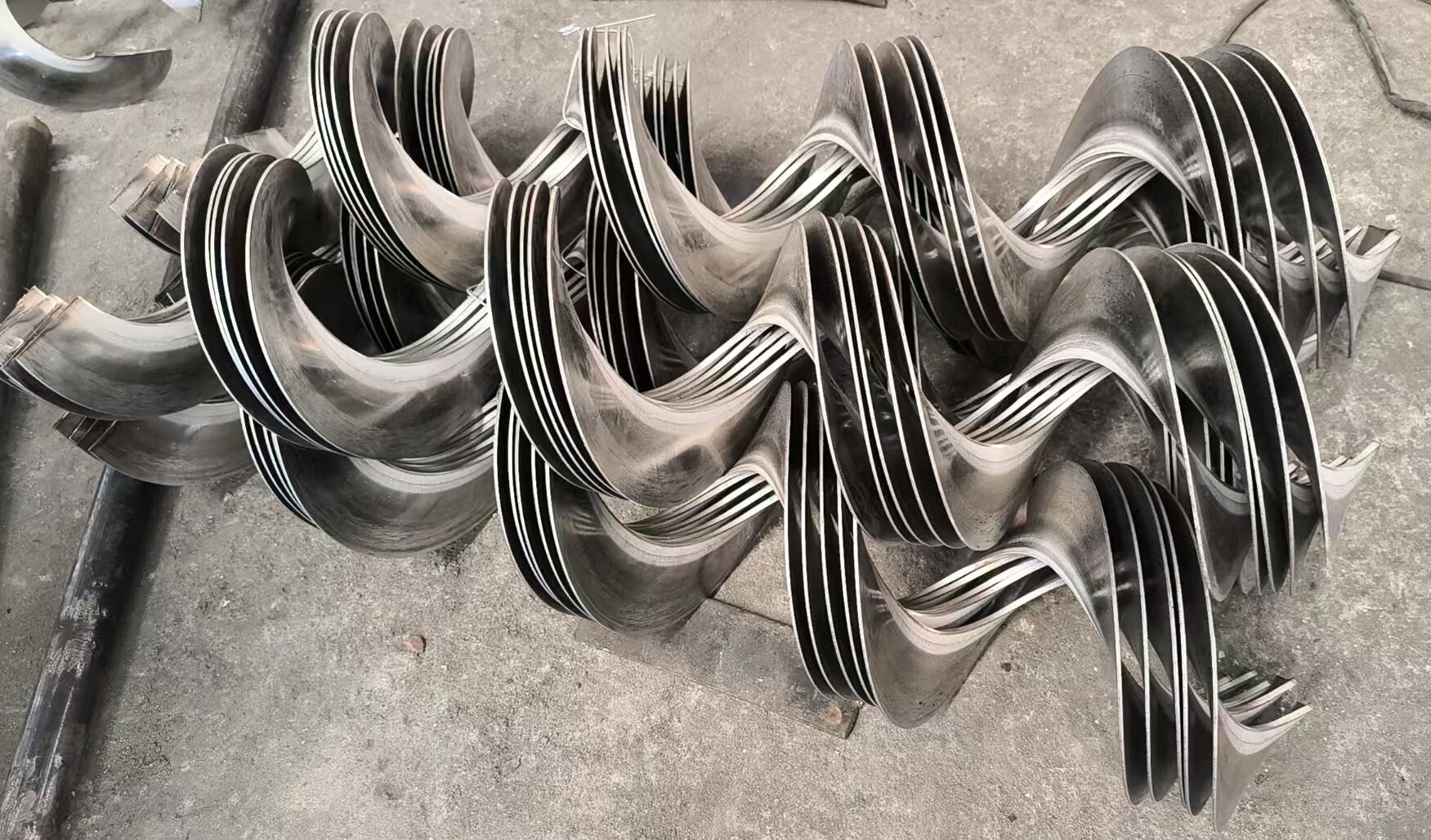

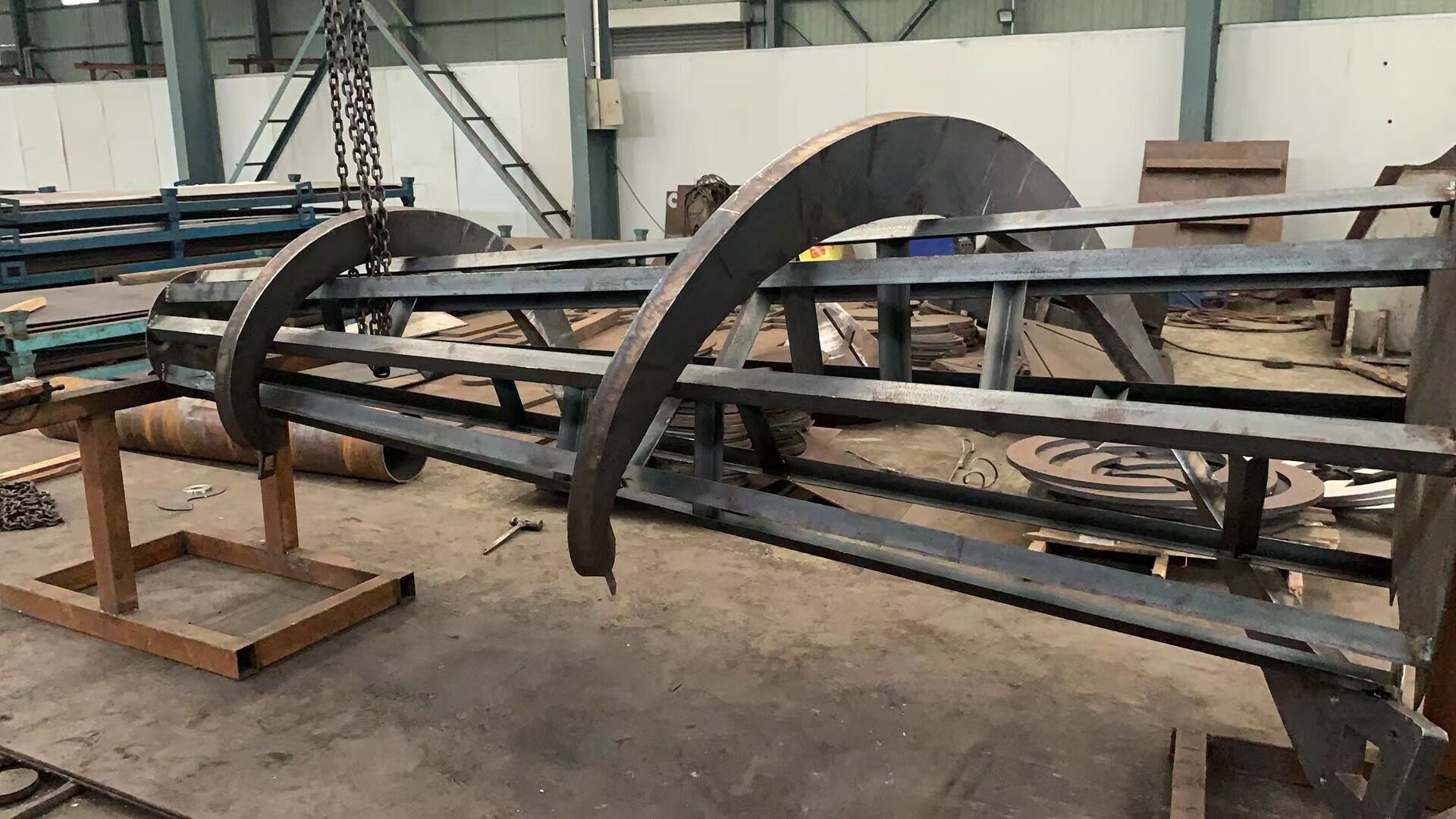

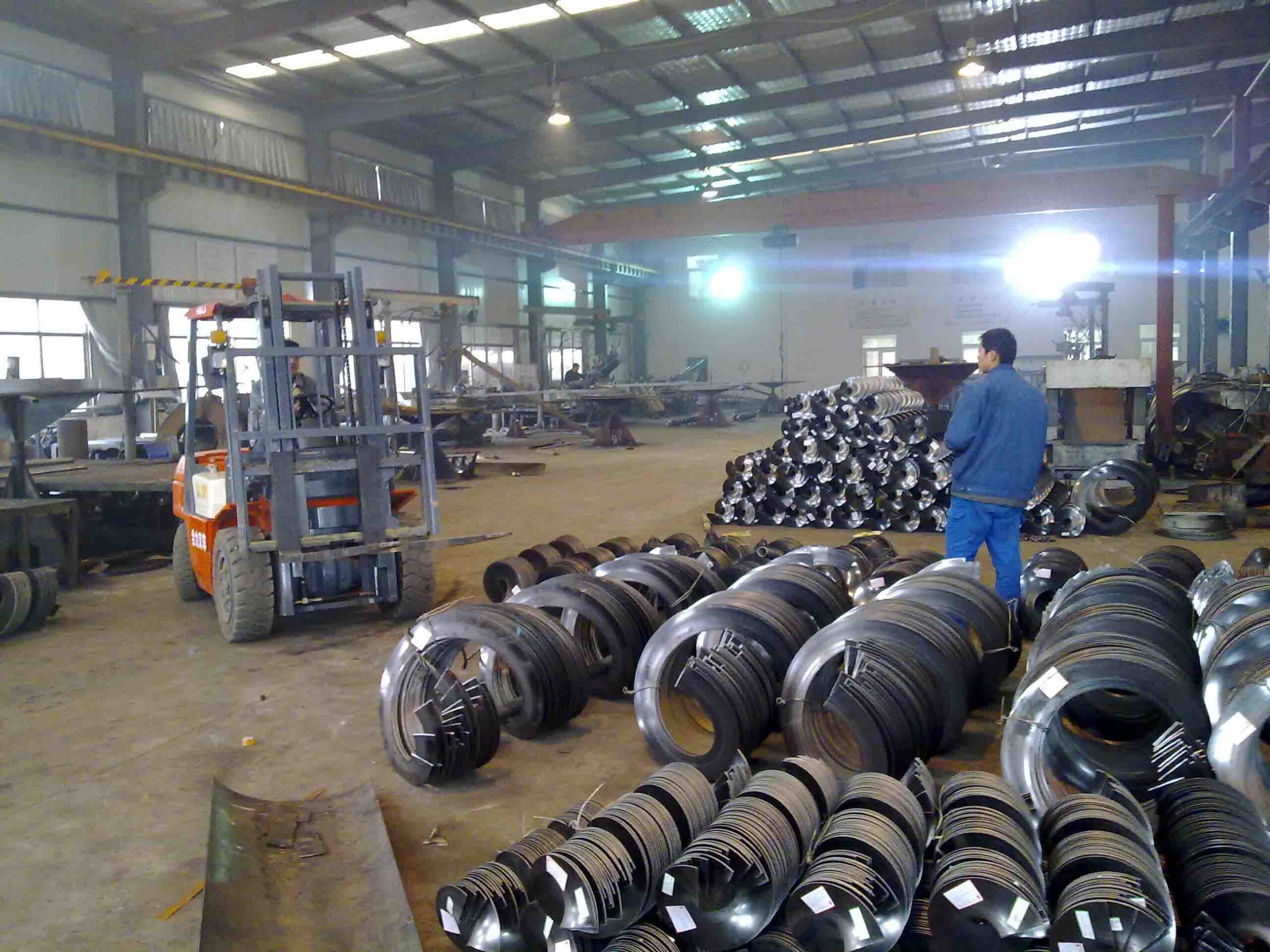

More live pictures of screw flight conveyor parts replacement flight.

We have sectional type screw flight in the link Here.
