Product Overview

The BR arc drag conveyor flight is a scraper paddle designed for U-type scraper conveyors, also known as self-cleaning scraper conveyor systems.

It is mounted on the scraper chain to convey materials efficiently while reducing material accumulation and improving system performance.

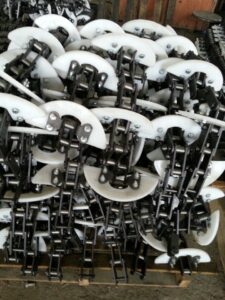

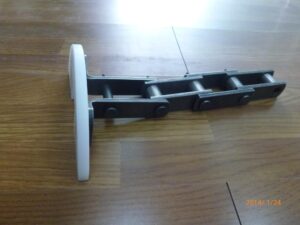

👉 Matching chain: GLR Scraper Conveyor Chain
👉 Related sprocket: Sprocket for Conveyor Roller Chain

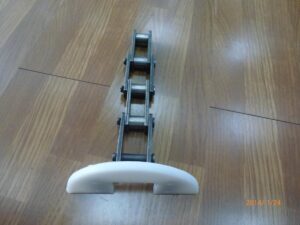

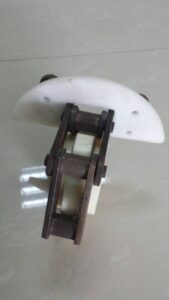

U type scraper conveyor paddle

Material Options and Characteristics

Similar to BF type scraper flights, BR type flights are available in multiple material options depending on working conditions:

UHMWPE (Ultra High Molecular Weight Polyethylene)

  • Most widely used material in the industry
  • Excellent anti-abrasion performance
  • Cost-effective solution
  • Suitable for most conveying applications

HDPE (High Density Polyethylene)

  • Lower cost option
  • Suitable for light-duty applications
  • Moderate wear resistance

Reinforced UHMWPE

  • Improved high-temperature resistance compared with standard UHMWPE
  • Can replace PU (nylon) material in most applications
  • More cost-effective than PU
  • Available in black or dark grey

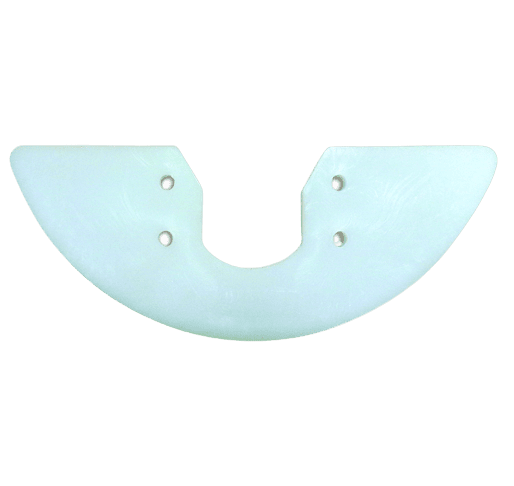

bf flat drag conveyor flight

PA (Nylon)

  • Higher wear resistance than UHMWPE
  • Higher cost
  • Still used in some specific applications such as rice mills

PU (Polyurethane / Nylon Type)

  • Higher temperature resistance
  • Now gradually replaced by reinforced UHMWPE in most applications
  • Still used in some conveyor systems such as ring chain conveyors

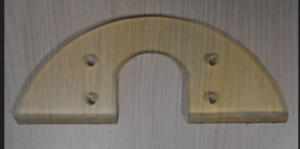

PU ployurethane flight

Performance Advantages

The BR arc scraper flight provides several key advantages:

  • Effectively reduces wear on scraper conveyor chains
  • Low noise during operation between chain and flight
  • Reduces damage to conveyed materials
  • Improves conveying efficiency
  • Suitable for continuous conveying systems

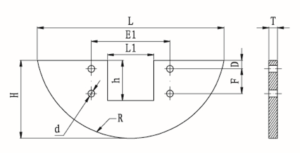

Technical Drawing with Pictures

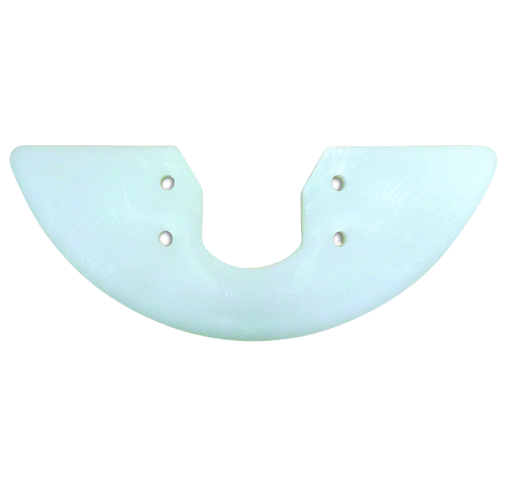

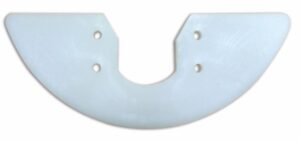

BR arc drag conveyor flight br arc drag conveyor flight

Technical Specifications of BR Arc Drag Conveyor Flight

Model L L1 T H h R E1 F D d
BR80x58 150 50 10 58 30 80 80 14 7
BR80x70 160 52 10 70 46 80 74 27 12 7
BR90x90 180 60 10 90 43 90
BR100x74 180 55 10 74 43 100 102 32 12 9
BR100x90 196 60 10 90 45 100 102 32 14 9
BR110x70 195 48 10 70 40 110 90 11 9
BR110x77 200 40 9 77 42 110 50 53 9
BR122x90 230 60 10 90 40 122 102 32 14 9
BR125x100 242 60 10 100 52 125 102 32 11 9
BR135x110 262 72 10 110 53 135 102 32 19 9
BR146x125 285 60 13 125 50 146
BR155x110 295 80 14 110 55 155 120 32 20 9
BR158x126 300 50 14 126 50 158 111.6 32 16 9
BR162x108 303 104 14 108 67 162
BR185x132 350 60 14 132 58 185 102 32 19 9
BR198x148 375 60 14 148 77 198 142 32 26 9
BR205x142 390 60 15 142 56 205 102 32 18

The hole spacing and diameter can be customized to meet specific client requirements.

Reinforced UHMWPE Plastic Drag Conveyor Flights

Features:
Anti-static and high temperature resistant

Color:
Black or dark grey

Pictures

br arc drag conveyor flight   br arc drag conveyor flight

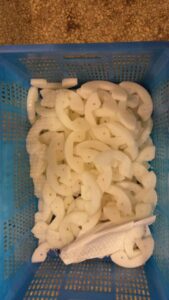

UHMWPE arc scraper flight

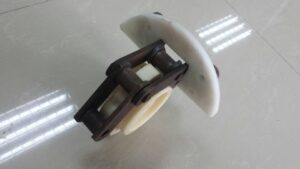

br arc drag conveyor flight         self cleaning conveyor scraper blade

Application

BR arc drag conveyor flights are widely used in:

  • U-type scraper conveyors
  • Self-cleaning conveyor systems
  • Grain handling systems
  • Feed processing plants
  • Bulk material conveying systems

Compatibility

The BR arc scraper flight is designed to work together with:

Proper matching between chain, flight and sprocket ensures stable operation, reduced wear and longer service life.

Customization

We provide customized scraper flights based on your requirements:

  • Flight size and thickness
  • Hole diameter and mounting position
  • Material selection
  • Conveyor system design

BF vs BR Flight Type

  • BF Type: Flat scraper flight, used in en-masse and horizontal scraper conveyors
  • BR Type: Arc scraper flight, designed for U-type and self-cleaning conveyor systems

System Recommendation

A scraper conveyor system consists of chain, sprocket and scraper flights working together.

For U-type systems, the typical combination is:



👉Not sure which scraper flight material is suitable for your application?
Send us your working conditions or drawings, and we will recommend the most suitable solution.
