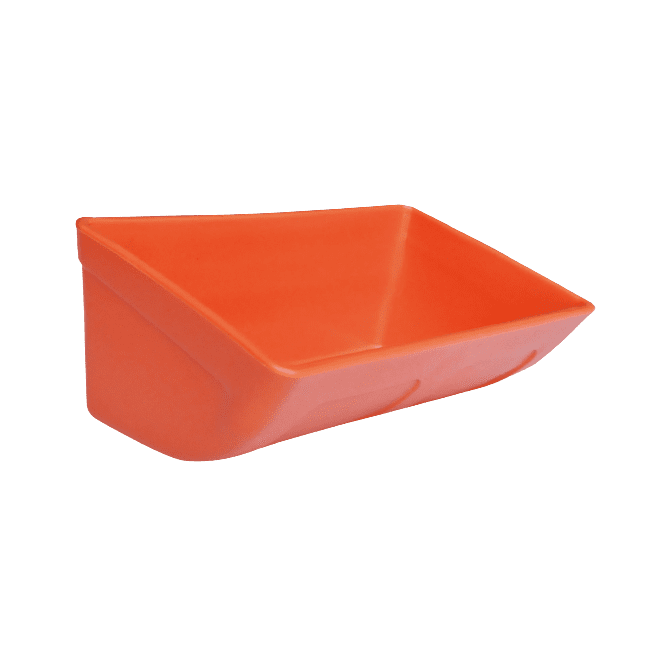

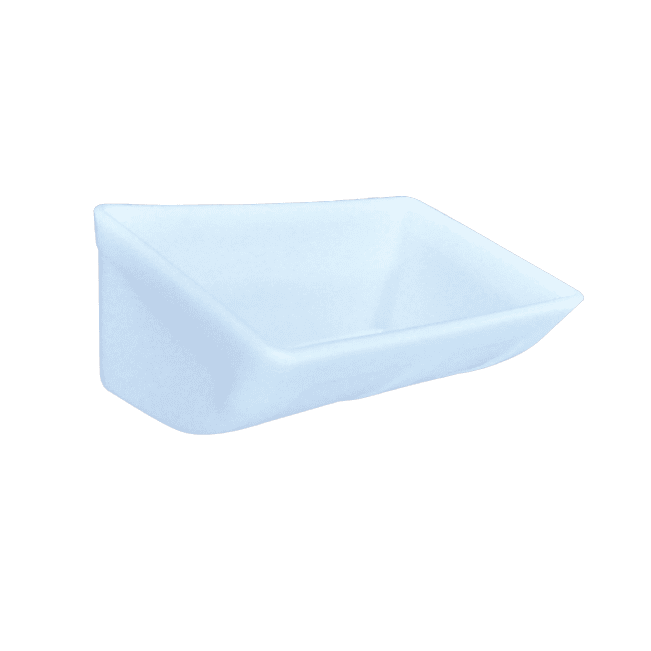

DQ type of plastic elevator bucket is a shallow bottom elevator bucket. Correspondingly, the DS elevator bucket is a deep bottom bucket. Both buckets almost have the same A and B size, like there is DQ2314 and a DS2314.
The DQ series bucket is suitable for the powder materials compared with DQ Series, using the centrifugal force to run.
This kind of bucket is widely used in Europe, represented by the STIF elevator bucket company in France.

Use advice:

• It is suitable for high-speed centrifugal discharge and light bulk material lifting;
• A, B and C sides shown below table is for HDPE material. For the different shrinkage of different materials Nylon and PU elevator bucket size approximately increased by 2%;
• Recommend using (Z-Y)+5% capacity data as your engineering design use.

Model	Bucket Dimension(mm)			Mounting Holes(mm)				Capacity(L)
	Length A	Proj. B	Depth C	From Top D	Hole Centres E	No. of Holes	Hole diameter	Total Level (X-Y)	Usable Level (Z-Y)+5%	Water Level (Z-Y)
DQ1009	106	93	66	25	50	2	7	0.40	0.22	0.21
DQ1311	136	118	72	25	60	2	7	0.50	0.32	0.30
DQ1312	135	117	85	30	60	2	7	0.70	0.64	0.61
DQ1613	168	132	80	25	90	2	9	1.05	0.79	0.75
DQ1814	184	132	83	30	100	2	9	1.10	0.84	0.80
DQ1914	190	147	117	35	100	2	9	1.78	1.31	1.25
DQ2312	234	125	95	35	120	2	9	1.50	1.16	1.10
DQ2314	237	143	96	30	120	2	9	1.90	1.47	1.40
DQ2315	235	155	91	30	120	2	9	2.00	1.68	1.60
DQ2316	234	160	97	35	120	2	9	2.00	1.47	1.40
DQ2417	242	178	115	40	120	2	9	3.00	2.36	2.25
DQ2616	260	167	144	50	80	3	9	2.20	1.32	1.25
DQ2814	287	143	94	30	90	3	9	2.20	1.79	1.70
DQ2815	275	153	91	30	90	3	9	2.60	2.21	2.10
DQ2816	278	158	108	35	90	3	9	2.70	2.10	2.00
DQ2817	280	173	121	40	90	3	9	3.20	2.31	2.20
DQ2824	280	244	169	45	100	3	9	6.40	5.25	5.00
DQ3216	319	158	111	35	80	4	9	3.00	2.20	2.10
DQ3321	330	215	138	40	85	4	9	5.90	4.43	4.22
DQ3325	331	256	166	50	85	4	9	8.50	6.90	6.60
DQ3823	382	230	165	45	100	4	9	8.00	6.40	6.10
DQ3917	393	170	130	40	100	4	9	5.00	3.42	3.25
DQ4423	447	232	163	45	90	5	9	9.00	7.25	6.90
DQ4723	475	231	161	45	95	5	9	10.20	7.67	7.30
DQ4726	461	255	170	50	95	5	11	12.00	8.72	8.30
DQ5121	519	225	168	50	100	5	11	10.76	9.46	8.60
DQ5626	560	260	175	50	115	5	11	14.20	11.10	10.60

Note: Fitting holes and hole diameter can be customized.
